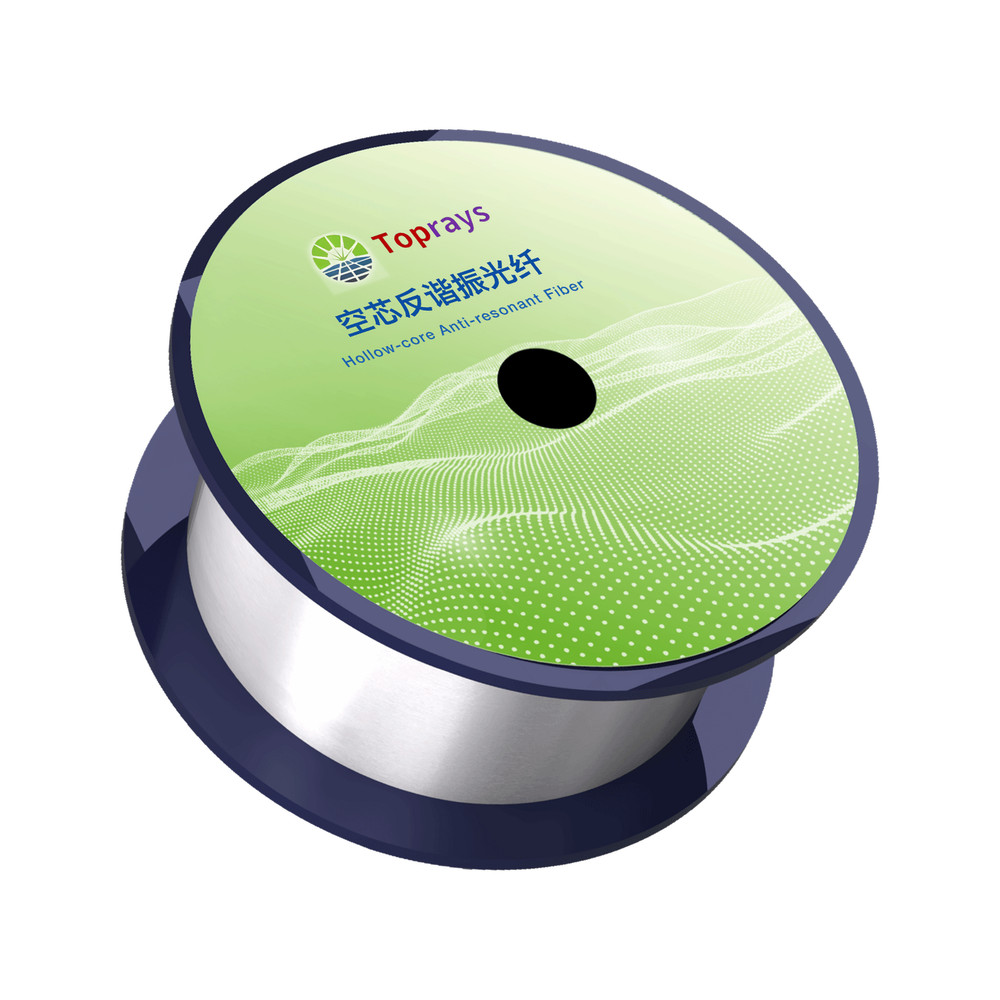

Hollow-core Anti-resonant Fiber (ARF)Hollow-core Anti-resonant Fiber (ARF)

Anti-resonant fiber (ARF) is a hollow-core fiber in which light propagates along the fiber axis in an air core whose refractive index is lower than that of the fiber cladding material. Hollow-core fibers feature ultra-low loss, low dispersion, low nonlinearity and near-light-speed propagation, which can advance hollow-core fiber communication transmission and communication devices and lay the foundation for next-generation, ultra-high-capacity, low-latency, high-speed optical communication systems. Hollow-core light guidance also offers ultra-low Rayleigh scattering, a low nonlinear coefficient and tunable dispersion, and can provide a higher laser damage threshold, with potential applications in high-power laser transmission, UV and mid-infrared light transmission, laser manufacturing, ultrafast lasers and other fields.
Features
Wide transmission bandwidth
Ultra-low loss
Low latency
Ultra-low nonlinearity
High damage threshold
Application Environment
High-speed optical communication
High-power laser energy delivery
Fiber sensors and hollow-core fiber probes
Nonlinear optics
Ultrafast laser pulse compression
Specifications
| Optical Performance | ARF-1550-230/380 | ARF-1310-230/380 | ARF-850-210/380 | ARF-3000-420/580 |
|---|---|---|---|---|
| Attenuation (dB/km) | ≤0.3 | ≤0.3 | ≤1 | ≤60 |
| Bandwidth (nm) | 1530-1625 | 1260-1360 | 800-920 | 2820-3100 |
| Mode Field Diameter (μm) | 22±3 @1550nm | 22±3 @1310nm | 20±3 @850nm | 29±3 @3000nm |
| Dispersion Coefficient (ps/nm/km) | ≤5 @1550nm | ≤5 @1310nm | - | - |
| PMD (ps/√km) | ≤0.5 @1550nm | ≤0.5 @1310nm | - | - |
| Macrobend Loss (dB) | ≤0.2 @1550nm | ≤0.2 @1310nm | - | - |
| Geometric Characteristics | ARF-1550-230/380 | ARF-1310-230/380 | ARF-850-210/380 | ARF-3000-420/580 |
|---|---|---|---|---|
| Cladding Diameter (μm) | 230±5 | 230±5 | 210±5 | 420±5 |
| Coating Diameter (μm) | 380±10 | 380±10 | 380±10 | 580±10 |
| Coating-Cladding Concentricity (μm) | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
