TOP® Multicore FiberTOP® Multicore Fiber
TOP® multicore fibers open new capabilities for laser power delivery: by using different cores, or several cores at once, power density and beam shape can be precisely controlled. TOPRAYS offers customizable multicore fibers to meet your specific needs.
Advantages
Supports kilowatt-level power
Non-circular core shapes possible
Precise control of power density
Higher precision
Step-index profile
Special jackets available for high-temperature, high-vacuum and highly corrosive chemical environments

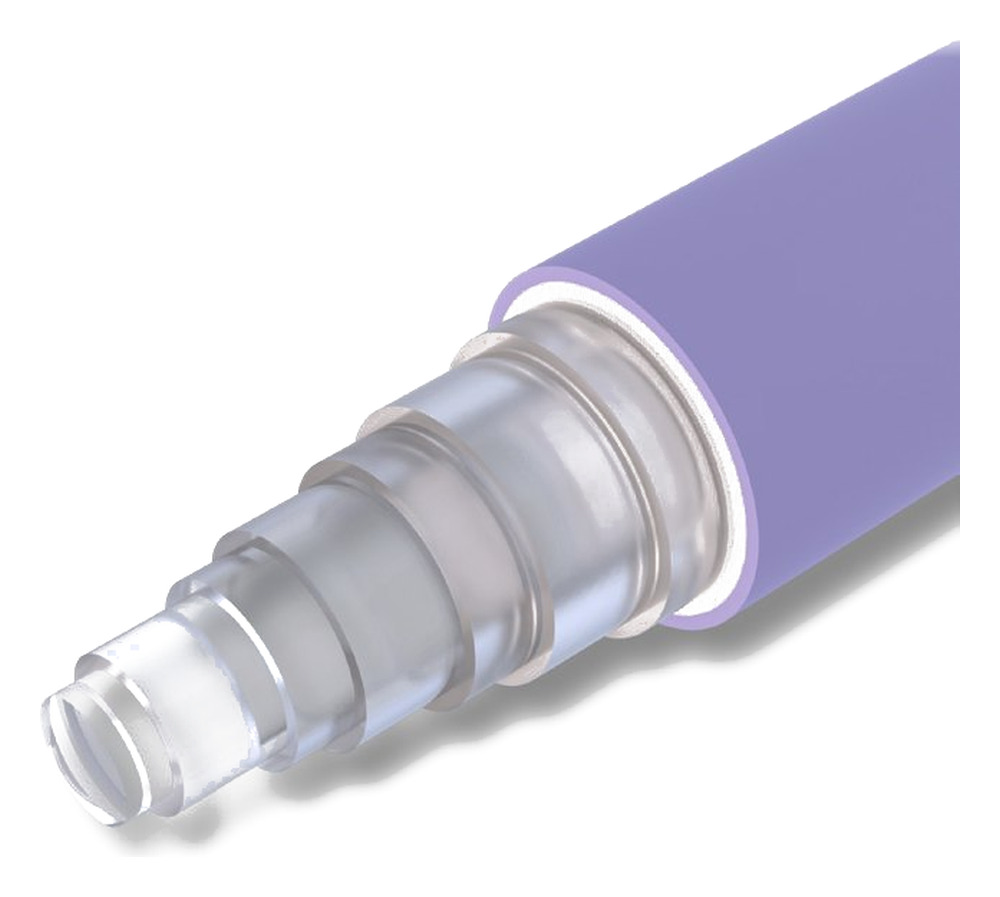

Construction
Silica glass core · fluorine-doped silica cladding · primary coating · secondary jacket
Jacket Options · Primary Coating
| Material | Operating Temperature |
|---|---|
| Hard cladding (fluorinated acrylate) | -40 to +80 °C |
| Silicone | -40 to +150 °C |
| Polyimide | -190 to +350 °C |
| Acrylate | -40 to +85 °C |
| Aluminium | -196 to +400 °C |
Jacket Options · Secondary Jacket
| Material | Operating Temperature |
|---|---|
| ETFE（Tefzel®） | -40 to +150 °C |
| Nylon | -40 to +100 °C |
| Acrylate | -40 to +85 °C |
| DuPont Hytrel® 7246 | -40 to +140 °C |
| Acrylate DeSolite® DF-0009 | -40 to +150 °C |
| PFA Fluon® | -200 to +260 °C |

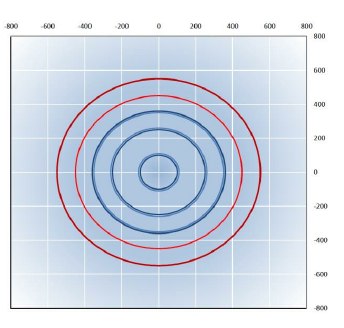

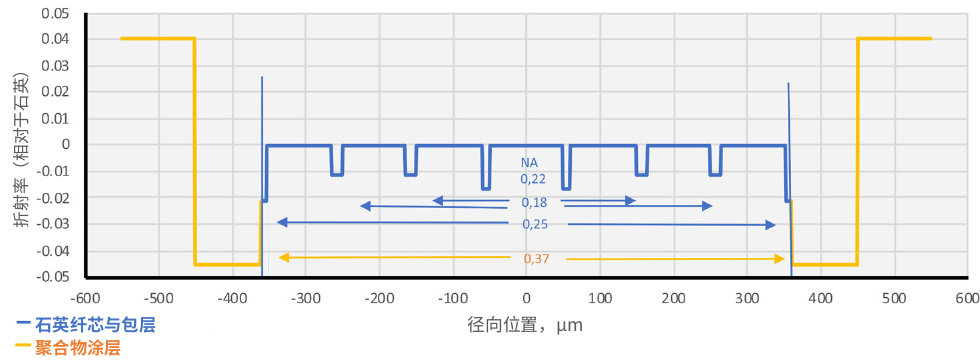

Fiber Cross-section & Refractive Index Profile
4 pairs of quartz/fluorine-doped* quartz layers (4 concentric cores), overcoated with silicone and nylon
* WF or UV
100/120/300/330/500/530/705/720/900/1100SN
NA = 0.22 / 0.18 / 0.18 / 0.25 // 0.37
Our multicore fibers can be fully customized; please contact us for more information.
Applications
The preferred solution for applications including processing of metal sheets of different thicknesses, sensing and laser delivery.
