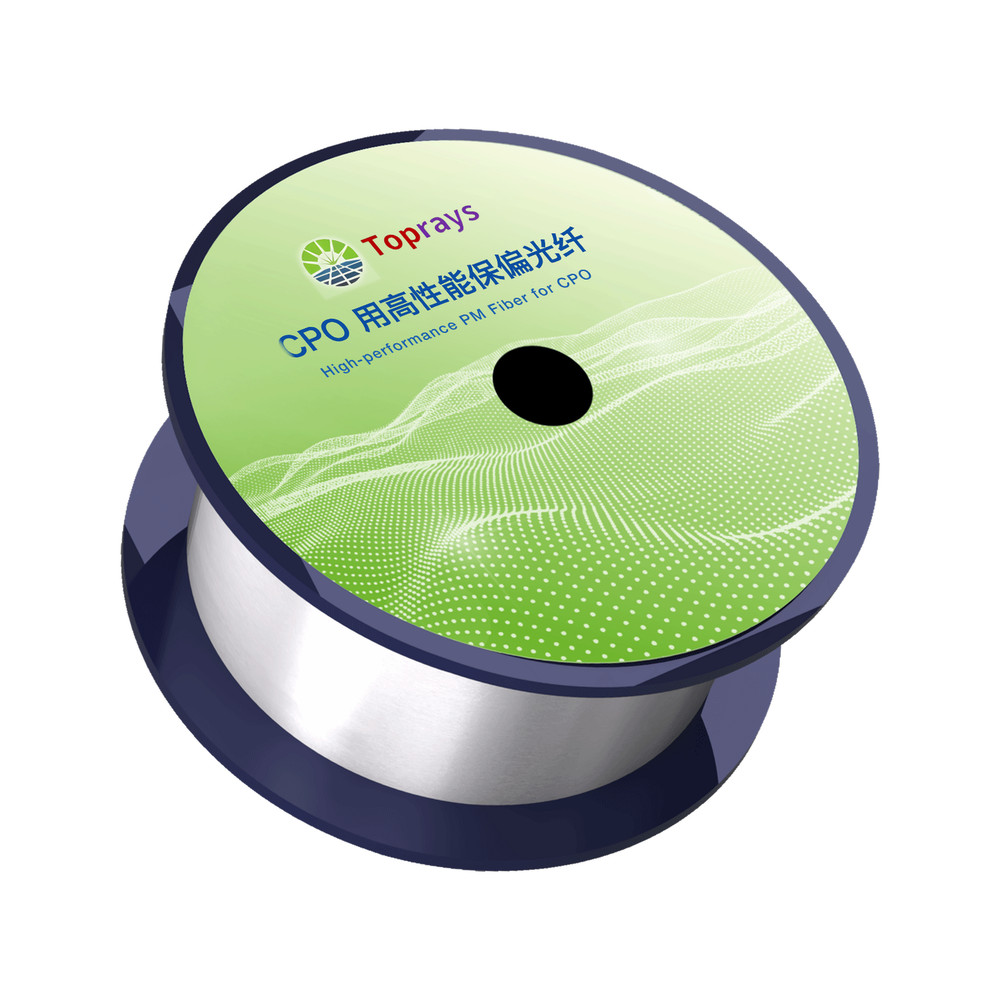

High-performance PM Fiber for CPOHigh-performance PM Fiber for CPO
Targeting high-density, highly integrated and highly stable co-packaged optics (CPO) applications, we offer a series of high-performance polarization-maintaining (PM) fibers for CPO. The series uses a mature and reliable Panda structure with symmetric, regular dual circular stress elements, delivering high birefringence, excellent grindability, low transmission loss, and high-precision, highly consistent geometric parameters that fully meet the stringent requirements of CPO precision packaging.
It covers the 1310 nm operating wavelength in two cladding diameters, 125 μm and 80 μm. The bend-resistant structure is optimized with a minimum bend radius of 5 mm, suiting the trend toward high-density integration and miniaturized packaging in optical networks, and providing a stable, reliable, high-performance optical transmission medium for CPO co-packaged optics.
Features
Excellent polarization-maintaining performance
Excellent grindability
Excellent consistency and uniformity
Strict geometric tolerances
Compliant with RoHS and REACH
Application Environment
CPO/NPO
Polarization-maintaining device pigtails
Miniaturized, highly integrated polarization-sensitive devices
Bend-insensitive devices
Specifications
| Optical Performance | PM1310C125/250G | PM1310-80/165G | PM1310-125/250G-BIR5 | PM1310-80/165G-BIR5 |
|---|---|---|---|---|
| Operating Wavelength (nm) | 1310 | 1310 | 1310 | 1310 |
| Cut-off Wavelength (nm) | 1100 ~ 1260 | 1100 ~ 1260 | 1100 ~ 1260 | 1100 ~ 1260 |
| Attenuation (dB/km) | ≤0.5 | ≤1.5 | ≤2.0 | ≤2.0 |
| Mode Field Diameter (μm) | 9.0±0.5 | 8.2±0.5 | 7.8±0.5 | 7.4±0.5 |
| Beat Length (mm) | 2.5 ~ 4.0 | 2.0 ~ 3.5 | 1.5 ~ 3.0 | 1.5 ~ 3.0 |
| 100 m Crosstalk (dB) | ≤-30 | ≤-25 | ≤-30 | ≤-30 |
| 4 m Crosstalk (dB) | ≤-40 | ≤-40 | ≤-40 | ≤-40 |
| Bending Crosstalk (dB) | / | / | ≤-30 (dia.10mm, 10turns) | ≤-30 (dia.10mm, 10turns) |
| Macrobend Loss (dB) | / | / | ≤0.1 (dia.10mm, 10turns) | ≤0.1 (dia.10mm, 10turns) |
| Geometry & Material Specifications | PM1310C125/250G | PM1310-80/165G | PM1310-125/250G-BIR5 | PM1310-80/165G-BIR5 |
|---|---|---|---|---|
| Cladding Diameter (μm) | 125.0±0.3 | 80.0±0.5 | 125.0±0.3 | 80.0±0.5 |
| Coating Diameter (μm) | 250.0±10.0 | 165.0±5.0 | 250.0±10.0 | 165.0±5.0 |
| Core-Cladding Concentricity (μm) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Cladding Non-circularity (%) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating Structure | Dual-layer UV-curable acrylate resin | |||
| Environmental & Mechanical Performance | PM1310C125/250G | PM1310-80/165G | PM1310-125/250G-BIR5 | PM1310-80/165G-BIR5 |
|---|---|---|---|---|
| Operating Temperature (℃) | -45 ~ +85 | -45 ~ +85 | -45 ~ +85 | -45 ~ +85 |
| Proof Test (kpsi) | 100 (200 optional) | 100 (200 optional) | 200 | 100 |
