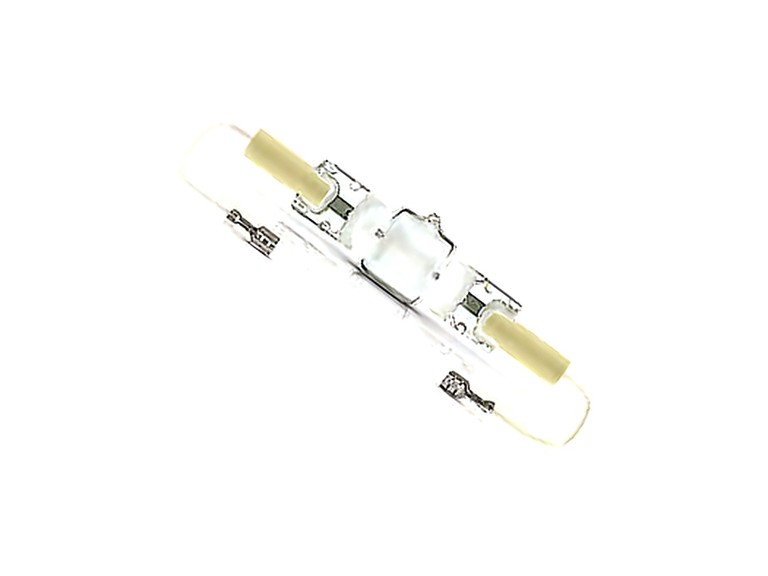

HPA Series — UV-A Medium-pressure Metal Halide LampsHPA UV-A Medium-pressure Metal Halide Lamp

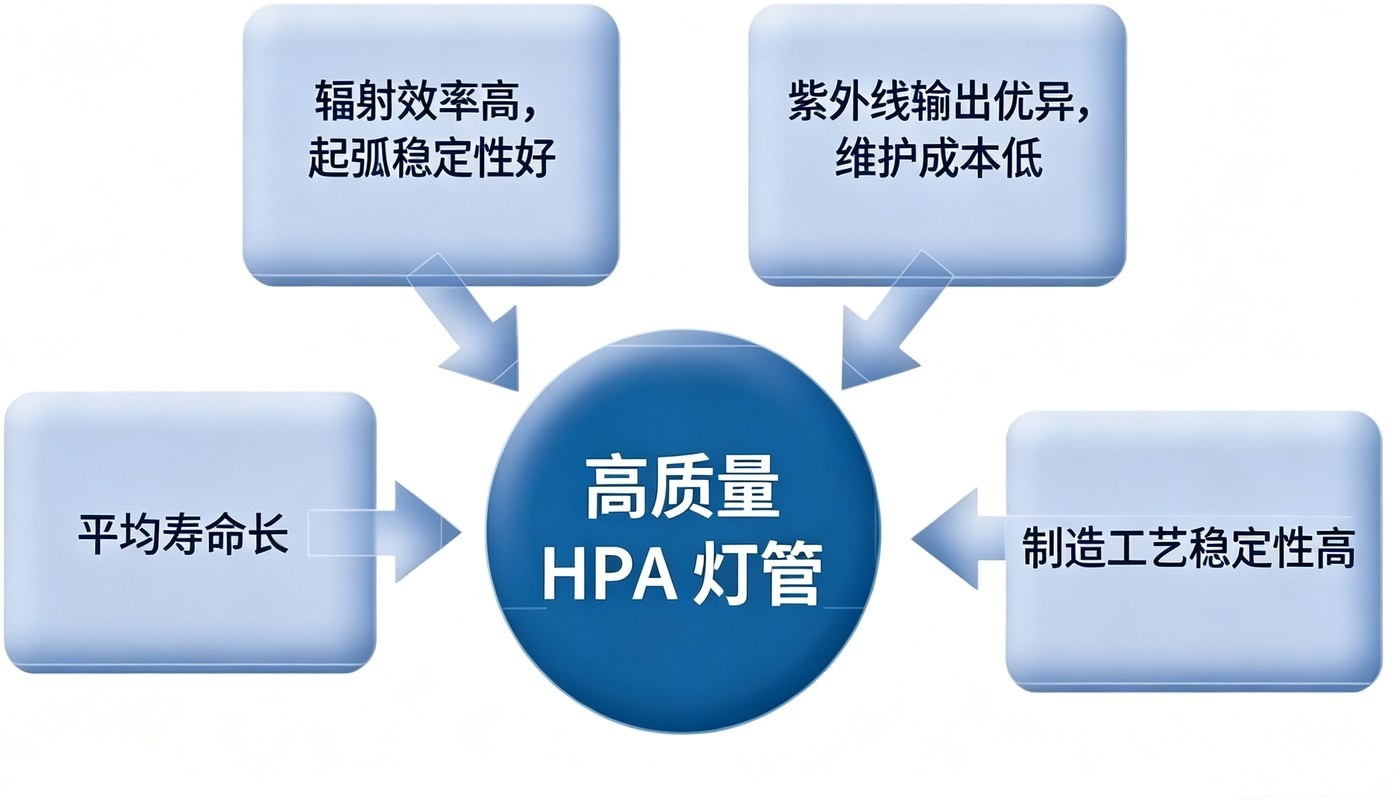

The HPA series is a medium-pressure metal halide discharge lamp optimized for the UV-A band (315 – 400 nm) and a core light source for copying and photochemical processes. The lamp is made from ozone-free quartz and precisely tuned with specific metal halide additives for high radiant efficiency and arc stability.
Key Features
| Item | Value |
|---|---|
| Spectral range | Main peak in UV-A (315 – 400 nm) with a small amount of UV-B / UV-C |
| Ozone generation | None (ozone-free quartz) |
| Bulb operating temperature | 750 ℃ – 950 ℃ |
| Maximum pinch temperature | 350 ℃ |
| Burning position | Horizontal(±10°) |
| Cooling | Forced-air cooling according to power class |
Typical Applications
UV curing of adhesives, resins and pigmented lacquers (coatings / inks)
Printed circuit board (PCB) exposure
Offset plate making
Contact copying from transparent film to photosensitive media (film, offset plates, microfilm)
Specifications
| Model | Power (W) | Voltage (V) | Current (A) | Arc length (mm) | Overall length (mm) | Diameter (mm) | UV-A irradiance* (µW/cm²) | 750 h maintenance | Base | Cable length |
|---|---|---|---|---|---|---|---|---|---|---|
| HPA 1000/20 R | 1100 | 120 | 10.5 | 112 | 129 ±2 | 28 max | 1780 | 80% | C10.5 | 90 mm (T type) |

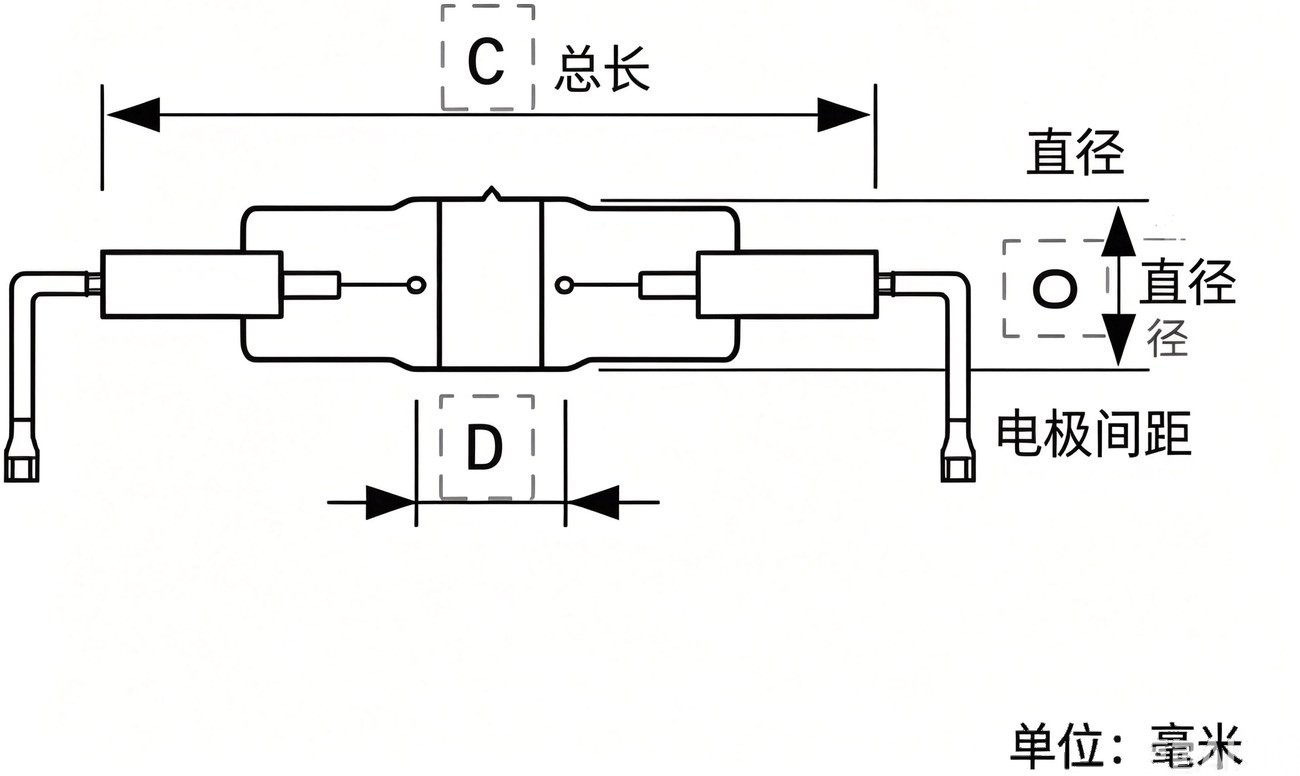

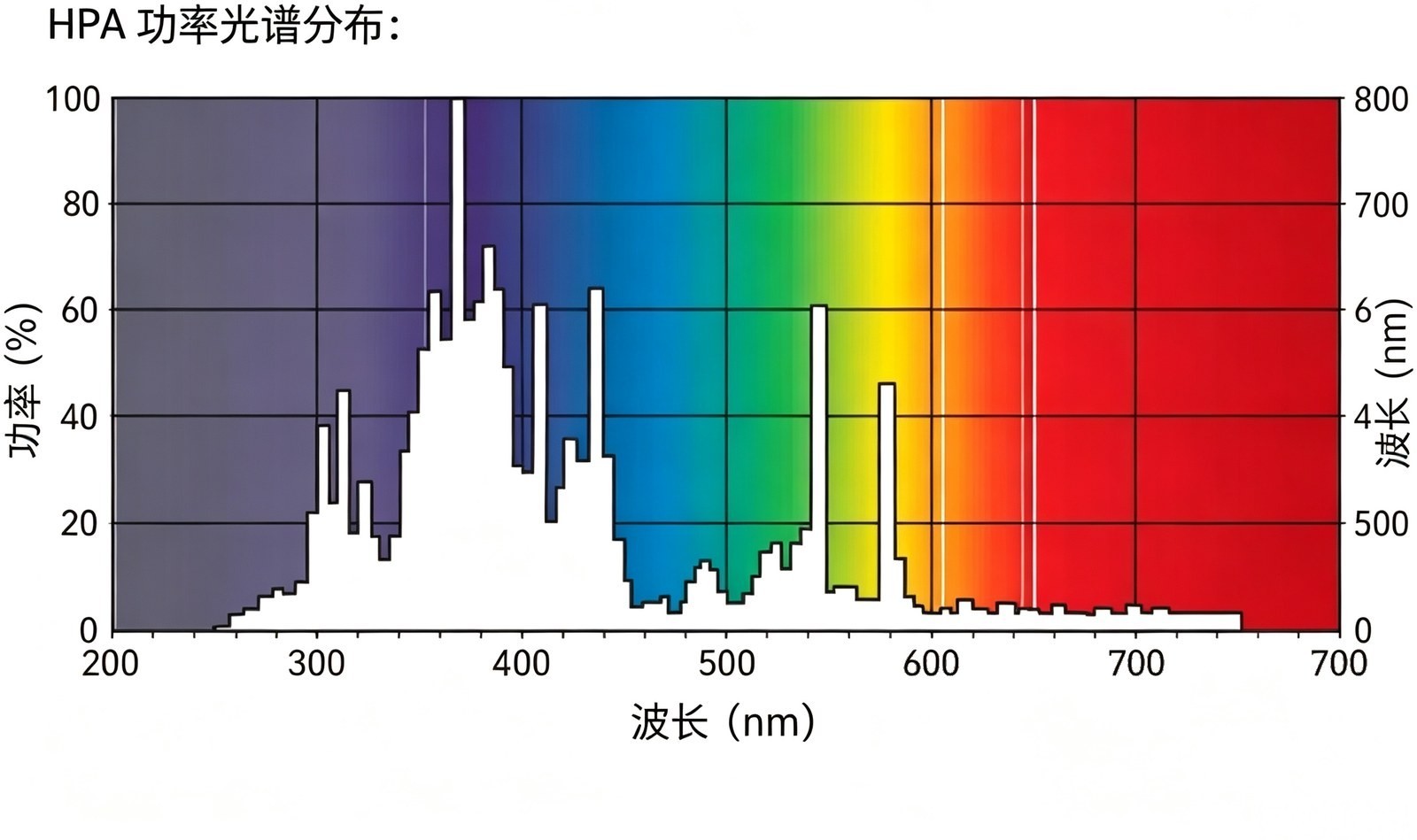

Spectrum & Outline
Note: UV-A irradiance is measured perpendicular to the lamp axis at 1 m; spectral response complies with IEC (315 – 400 nm).
