Special Light Sources

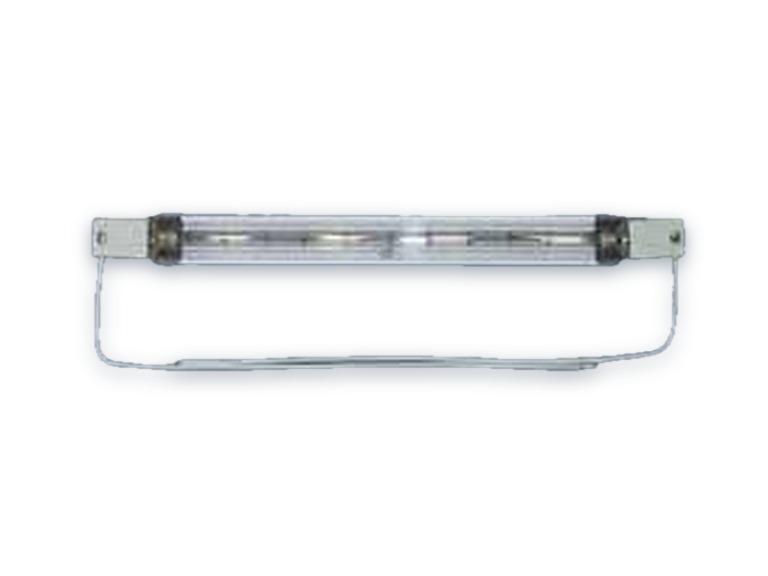

Twin-tube Quartz Infrared LampTwin-tube Quartz Infrared Lamp
The twin-tube quartz lamp is designed for catering and food processing environments. Its double quartz envelope delivers efficient heating while raising operating safety and maintenance convenience to a new level.
Key Advantages
Double safety: the twin quartz tubes isolate internal pressure and eliminate the risk of lamp bursting or quartz breakage — ideal where food preparation demands the highest safety
Easy maintenance: the smooth surface simply needs a light wipe with a duster, greatly reducing downtime
Reliable and durable: average life of up to 5,000 hours reduces frequent replacement costs

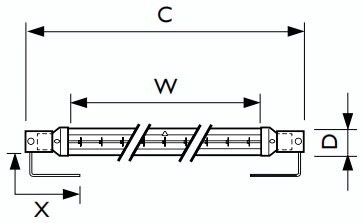

Outline Dimensions
Specifications
| Model | Power (W) | Voltage (V) | Overall length C (mm) | Heated length W (mm) | Cap | Tube diameter D (mm) | CCT (K) | Mounting | Lead (X) | Terminal |
|---|---|---|---|---|---|---|---|---|---|---|
| 13908J | 300 | 230 | 117.5 | 64 | J7s | 20.5 | 2400 | Horizontal | None | None |
| 13169Z/850 | 500 | 235 | 225 | 160 | SK15 | 19 | 2400 | Horizontal | 230/230 | Spliced |
