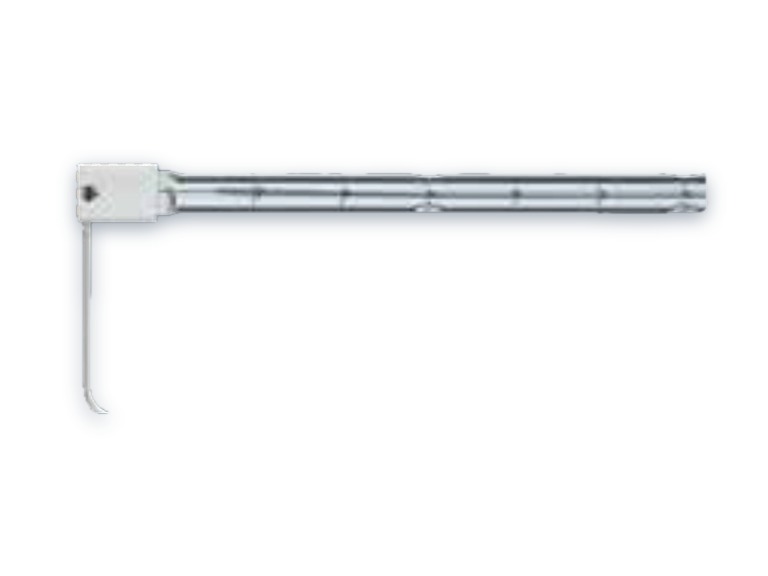

Vitae™ Infrared Halogen LampVitae™ Infrared Halogen Lamp

We live in an increasingly urbanized and polluted environment. Exhaust from cars, factories and power stations releases a large amount of harmful substances that accumulate in the body and eventually cause a range of symptoms. Sweating is one of the most effective ways to eliminate toxins and purify the body. The infrared light emitted by these lamps penetrates deep into the skin. The gentle warmth encourages perspiration while bringing relaxation and relief. Relaxing the body helps relieve stress and anxiety.
The Vitae™ infrared halogen lamps are designed for the wellness experience in wooden infrared therapy cabins or saunas. These high-tech lamps give health and beauty centres an innovative, fast and high-value service capability. Vitae™ infrared halogen lamps deliver multiple benefits for the body, combining a warm, comfortable sensation with efficient, direct and gentle heating.
Where it is used
| Segment | Residential / private users | Hospitality / commercial customers |
|---|---|---|
| Infrared therapy cabins and saunas | • Light domestic use | • Therapy centres • Fitness centres • Spas • Wellness clubs • Baby care |
Spectral Advantages
Vitae™ lamps achieve an optimal balance in the infrared emission spectrum; the IR reaches the subcutaneous tissue and releases heat more efficiently for more even, comfortable warmth
An ideal balance of short-wave and medium-wave infrared: the skin-penetrating effect of short-wave IR plus the comforting warmth of medium-wave IR (adjustable heat to avoid overheating)
Low colour temperature — very little visible light even without coating
Provides direct heating of the body, perfectly matched to skin absorption

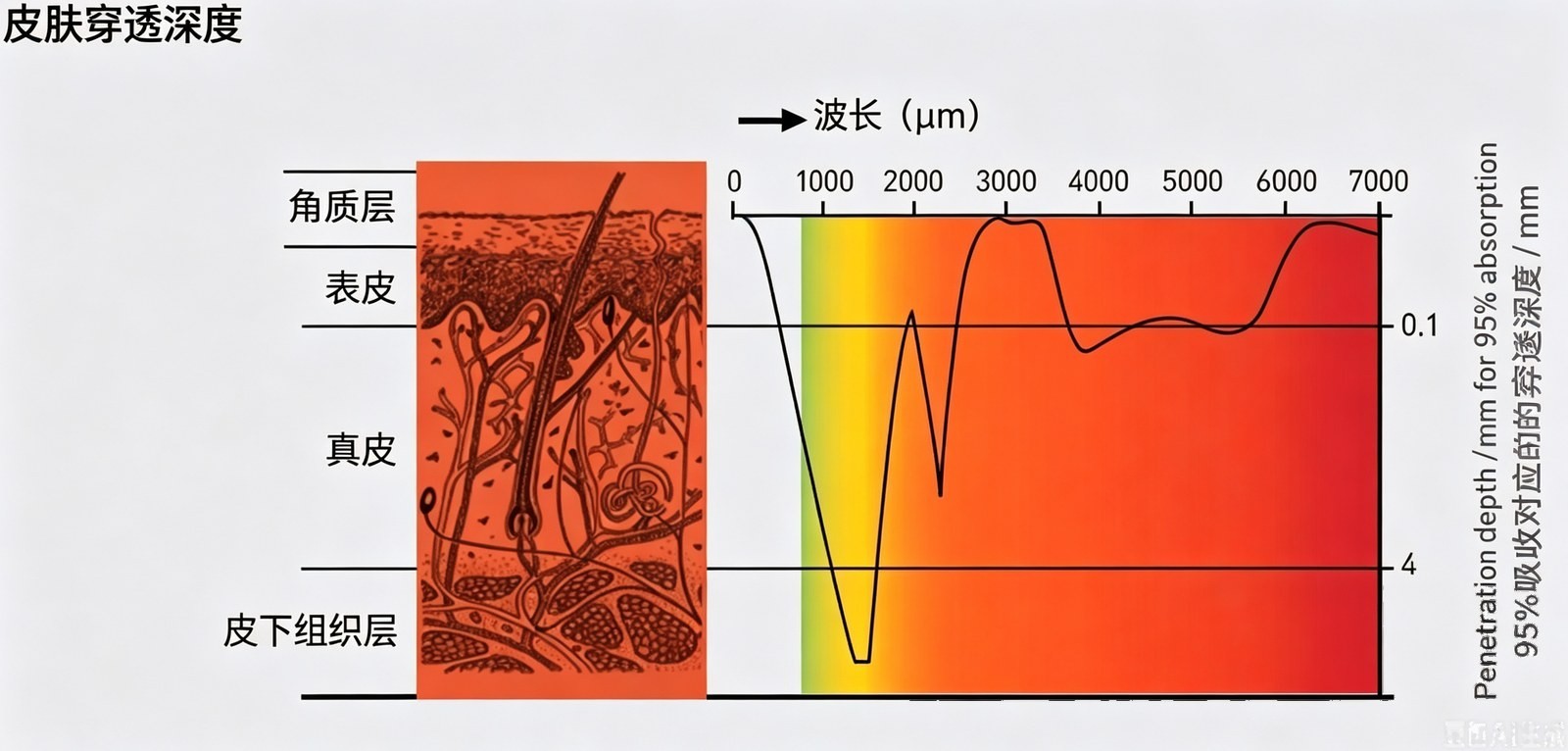

Skin Penetration

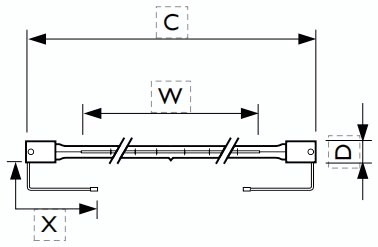

Outline Dimensions

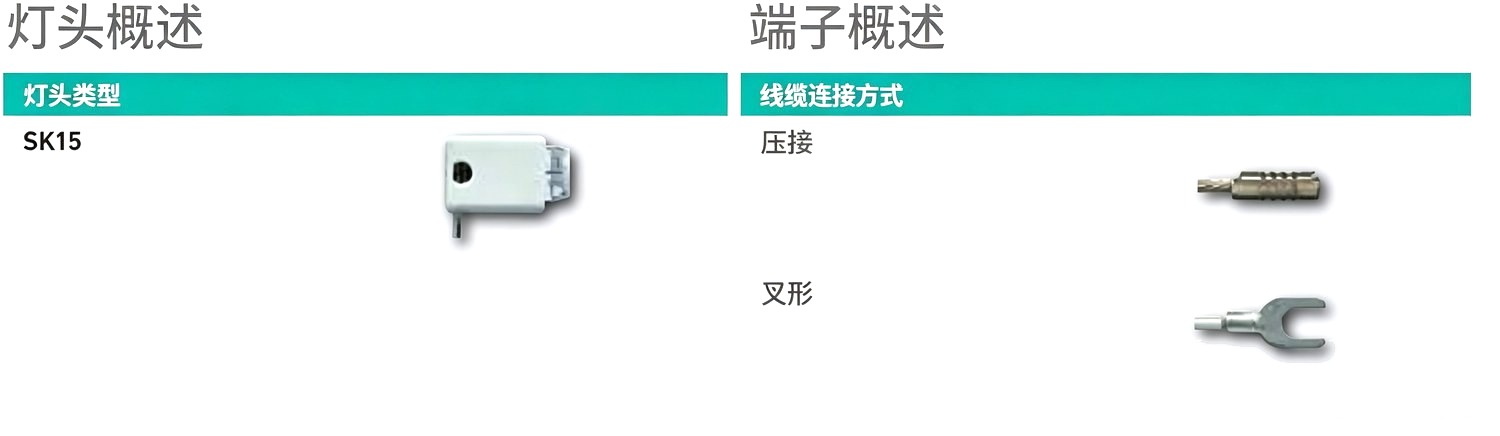

Bases & Terminals

Specifications
| Model | Power (W) | Voltage (V) | Overall length C (mm) | Heated length W (mm) | Cap | CCT (K) | Mounting | Lead (X) |
|---|---|---|---|---|---|---|---|---|
| 14181Z | 300 | 120 | 433 | 380 | SK15 | 1,850 | Any | 100/600 insulation |
| 14169Z | 350 | 235 | 628 | 550 | SK15 | 1,750 | Any | 230/1200 insulation |
| 14142Z | 500 | 235 | 787.5 | 700 | SK15 | 1,800 | Any | 230/1200 insulation |
| 14157Z | 500 | 235 | 628.5 | 550 | SK15 | 1,800 | Any | 230/1200 insulation |
| 14208Z | 500 | 235 | 787.5 | 700 | SK15 | 1,800 | Any | 230/1200 insulation |
| 14117Z | 750 | 230 | 787 | 700 | SK15 | 2,000 | Any | 230/1200 insulation |
| 14124Z | 750 | 230 | 787 | 700 | SK15 | 1,750 | Any | 230/1200 insulation |
| 14155Z | 750 | 230 | 787 | 700 | SK15 | 1,750 | Any | 230/1200 insulation |
| 13393Z | 1,300 | 235 | 787 | 700 | SK15 | 2,000 | Any | 200/200 insulation |
| 13990Z | 1,300 | 235 | 787 | 700 | SK15 | 2,000 | Any | 230/1200 insulation |
